High Resolution Camera Static Image Particle Size Analyzer Winner99E

High Resolution Camera Static Image Particle Size Analyzer Winner99e

Brief introduction:



Winner99E is a special instrument for particle size distribution and particle shape analysis. The instrument through well-designed professional-grade optical microscope and camera to obtain particles information; using a computer image analysis technology to analyze and process, thereby determining the particle size distribution and particle morphology. The instrument is easy to operate, the image is clear, intuitive measurement resolution is up to 0.1 micron / pixel, wide measuring range etc. outstanding features, It can be widely used in new product research and development, technology control and quality inspection ofuniversities, research institutes and enterprises.



Structural features:

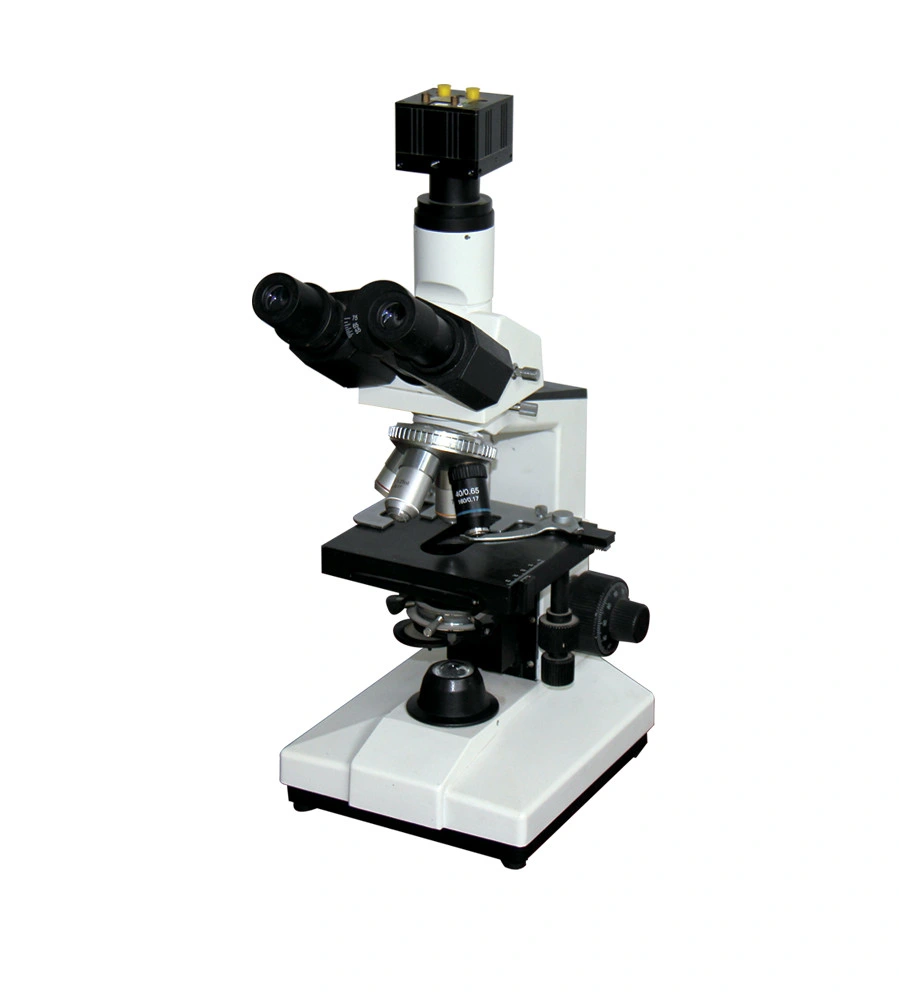

Winner 99E standard three most microscopic particle image analyzer system is composed of special microscope equipment, high-definition camera device and image analysis software.



Parameters :



Model

Winner99E

Standard

ISO13322-1: 2004; GB/T21649.1-2008

Size Range

1-6000 μm

Maximum Resolution

0.1 micron

Repeatability

<3%(error due to sample not considered)

Ruler Scale

3.2*3.2um

Segmentation Speed

<1 second

Segmentation Success rate

>98%

Operation system

Win XP/Win7

Microscope system

Microscope

Domestic biological microscope, (Japan Olympus is available)

Maxamplification

                    4000

Software function

Static collection

Take the sample morphology into high resolution JPG image



Single particle photo data

Cross-sectional area, volume, aspect ratio etc. 10 specification

characteristic parameter

D10,D50,D90,D100 etc.

 Related Products :
High Resolution Camera Static Image Particle Size Analyzer Winner99e



Application:

Winner 99E static particle image analyzer used in cement, ceramics, pharmaceuticals, paints, dyes, pigments, fillers, chemical products, catalysts, coal, sediment, dust, flour, food additives, pesticides, explosives, graphite, photographic materials, fuel , metal and non-metal powder, calcium carbonate, kaolin and other powder industry.

Package :

Wooden box package, G.W.:16 KG. Outer dimension is L55*W30*H39cm.

We would ship machine by DHL, FeDex, China express, by sea and by air.

High Resolution Camera Static Image Particle Size Analyzer Winner99e


After sale service :


1. We will send our technician to install instruments.( operation demo video CD will be offered also.)
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support in all a life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.

Certificates : CE AND ISO9001
High Resolution Camera Static Image Particle Size Analyzer Winner99e
High Resolution Camera Static Image Particle Size Analyzer Winner99e

FAQ :

 1. How about the package ? Is it safe during the delivery ?

All Particle size analyzer is packed by standard strong wooden carton with foam inside.

It is safe when shipping.



2. What is the delivery way ? How many days will the machine

We will ship the particle size analyzer by DHL,FedEx, UPS,etc (Door to Door Service), around 5 days to arrive.

Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.

Or by Sea to the seaport,  Minium CBM requirement : 1 CBM, around 30days to arrive.



3. Do you provide the Warranty ? How about the after sales service ?

2 year warranty free for spare parts, Whole life technical support.

We have professional after sales team, if any question, assistant videos are also provided in after-sale service.



4, This machine is easy to use ? if I have no experience, I can also operate it well ?

Do you provide the user manual and operating videos to support us ?

Yes, our particle size analyzer is designed to use easily, computer control. Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.

We will provide the English user manual for free , and the operation video is available.



5, If we come to your factory, if you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
